How to Set Up a VPN in Windows 10 [January 2020]

How to Setup a VPN in Windows 10

It’s no secret that Microsoft has declared Windows 10 the last version of the operating system for the foreseeable future. Instead of constantly upgrading their OS with new versions, as they used to do with XP, Vista, Windows 7, and so on, they’ve kept Windows 10 as their final OS. Microsoft’s goal is to improve upon and better secure Windows 10, instead of developing future versions of the popular operating system. The focus will be on developing “Windows a   s a service” with recurring fees and monthly updates. Future versions will not be Windows 11, Windows 12, and Windows 13 but will instead use versions of Windows 10, such as the Windows 10 November 2019 Update.

However Windows 10 develops in the future, it’s probably a good idea to set up a VPN (virtual private network) service for your Windows computer. Though Windows 10 is a lot more secure than its predecessors—and becomes more secure with each new update—you don’t want hackers and other malicious software or programs invading your personal computer. Using a VPN makes your internet connection anonymous, and can even give you the benefit of making Windows 10 faster than before.

If you don’t already have a VPN selected for use with your Windows PC, take a look at our selection of the best VPNs on the market today, then return here to set up your VPN with Windows.

Installing Your VPN with Windows

When it comes to installing a VPN on Windows, the easiest way to do it is to turn to the app itself. Most VPNs in 2020 use their own software that automatically enable VPN connections on Windows. Here’s how to do it.

Download the Installer

For this how-to, we’re using Private Internet Access for our VPN service. After choosing the monthly, quarterly, or annual subscription option, choose your payment method and make the purchase. Once you’ve paid, you’ll receive an email instructing you to download the installer for the VPN software.

After you’ve received and opened the email:

  • Download the Private Internet Access installer from the link provided in the email. After you do that, we’ll proceed to put the VPN software package on your Windows 10 computer.
  • Private Internet Access’ website, where you purchased the VPN software, will open. It will begin downloading the installer through your web browser.
  • Choose to “Save As,” if given the option, and save the installer to your desktop. This way, it’s easier to locate and start the installation of the Private Internet Access VPN software installer.

Install VPN Software

After the download completes for Private Internet Access, right-click on it with your mouse and select “Run as administrator.” You’ll see a command prompt box pop open on your Windows display. It will extract and install the needed items for the VPN software to work on your Windows 10 machine.   PIA installer

An install box will ask for your permission to install the Private Internet Access VPN on your Windows 10 computer.  Just click the “Install” button.

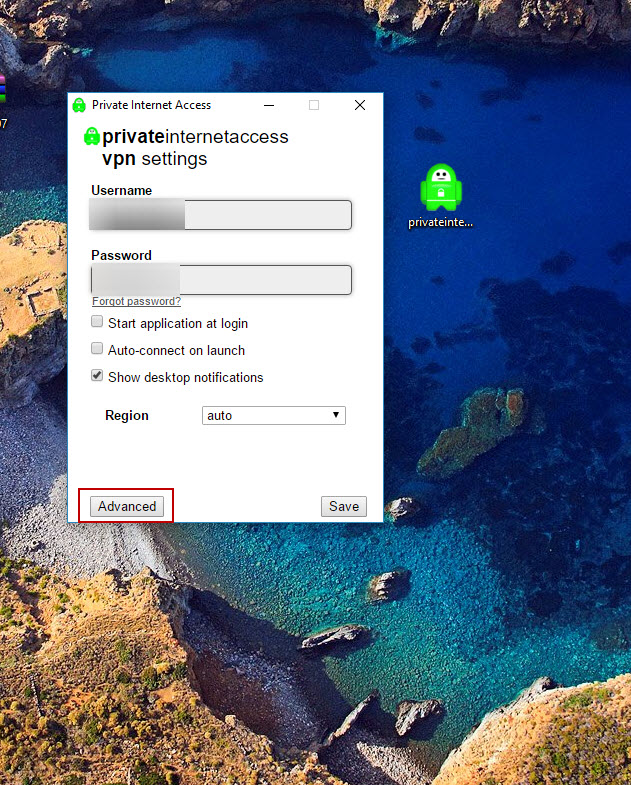

Next, you’ll want to change the connection type to TCP. To do that, right-click on the Private Internet Access icon in the system tray, at the bottom right in your Windows 10 taskbar. Go to and select “Settings” with your mouse. Next, click the “Advanced” button. PIA advanced

Select “TCP” in the top drop-down box where UDP shows as the default. Then, either pick your connection location or use “Auto.” If you’d like to use IPV6, you may also want to uncheck “IPV6 leak protection.” Whether you uncheck the “IPV6 leak protection” is up to you. Leak protection protects your personal information from “leaking” onto the Internet, affecting your privacy and security.

PIA TCP/IPV6

After you’ve selected the proper settings, click the “Save” button. Finally, right-click on the Private Internet Access icon in the system tray, at the bottom right in your Windows 10 taskbar.

Then, go up to “Connect” and click on it to connect via a VPN. Boom—that’s it. You’re now anonymously connected to the Internet!

Use Windows’ Built-In VPN

If you’d rather not have to pay for a VPN service, you can take a chance using a free VPN service—Windows 10 has a free built-in VPN. Yes, you read that right… Windows 10 lets you set up and use a built-in VPN. It is going to take a little bit of configuring on your part to get Windows 10’s built-in VPN service working, but we’ll help you through it again.

Follow these instructions to configure the built-in VPN that comes packaged with Windows 10.

  1. In the Windows 10 taskbar, click on the Windows icon. Then, click on “Settings” (the little gear icon).Windows 10 settings
  2. When the Windows Settings box appears on your desktop screen, click on “Network & Internet.” Network and Internet
  3. Then, in the left side panel, click on “VPN.”VPN panel
  4. In the VPN window, click “Add a VPN connection.”Add VPN Windows 10
  5. Select “Windows (built-in)” as your VPN provider in the drop-down box.
  6. For your connection name, enter whatever you’d like to call the connection.
  7. The server name or address gets entered next. You’ll need to know this information, as it pertains to your private server or the VPN server which you’ll connect to. You’ll need to do some research on your own to find a reliable VPN server that will let you connect to it.
  8. Next, choose “PPTP” (point to point tunneling protocol).Protocol
  9. Choose your username and password as your sign-in info. Then, enter your username and password in the text boxes. Make sure the box is checked to “Remember my sign-in info.”
  10. Last, click the “Save” button at the bottom of the VPN setup. Now you’re ready to start using it.

Your newly set-up VPN now appears in the VPN list. Just click on it and select the “Connect” button and you’re up and running.

***

There are so many VPN service providers available, paid and free, and it may be hard to choose one. It could take some time and research to conclude your search. When you’ve found the one that suits your needs, you can either use their installation software or use the built-in VPN that comes with Windows 10.

If you’re looking for a shortcut to finding your new VPN, however, make sure to check out our list of the best VPN services in 2020, with some of our favorite picks for VPNs on Windows and other platforms.

Do you have a favorite VPN service or do you use Windows’ built-in VPN service? Do you have any advice for someone setting up a VPN on Windows 10? Please leave us a comment below!

2 thoughts on “How to Set Up a VPN in Windows 10 [January 2020]”

Avatar Milo D Sylfest says:
checking VPNs available.
Avatar dguy says:
Two things i want to comment about this article. First, please do NOT use PPTP, EVER. It’s a flawed VPN protocol and shouldn’t even be included in Windows 10 or any other current OS for that matter. Second, Windows has provided built in VPN capabilities as far back as Windows 95, which included PPTP (see point 1) which Microsoft created for that OS.

VPN protocols that should be used are the following in order of most secure to least.
OpenVPN
LT2P/IPsec
IPsec (IKEv2)
